产品详情

描述

描述:

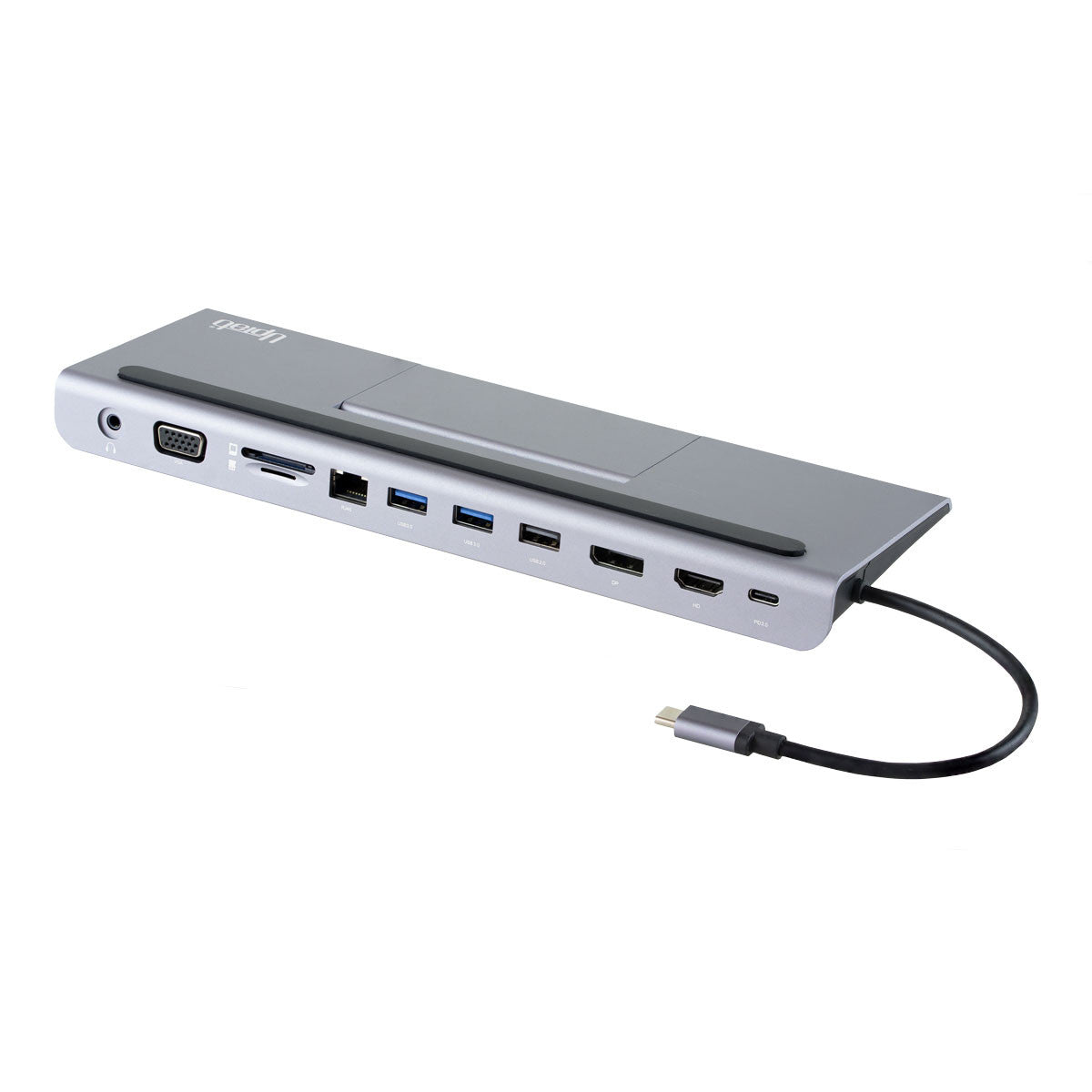

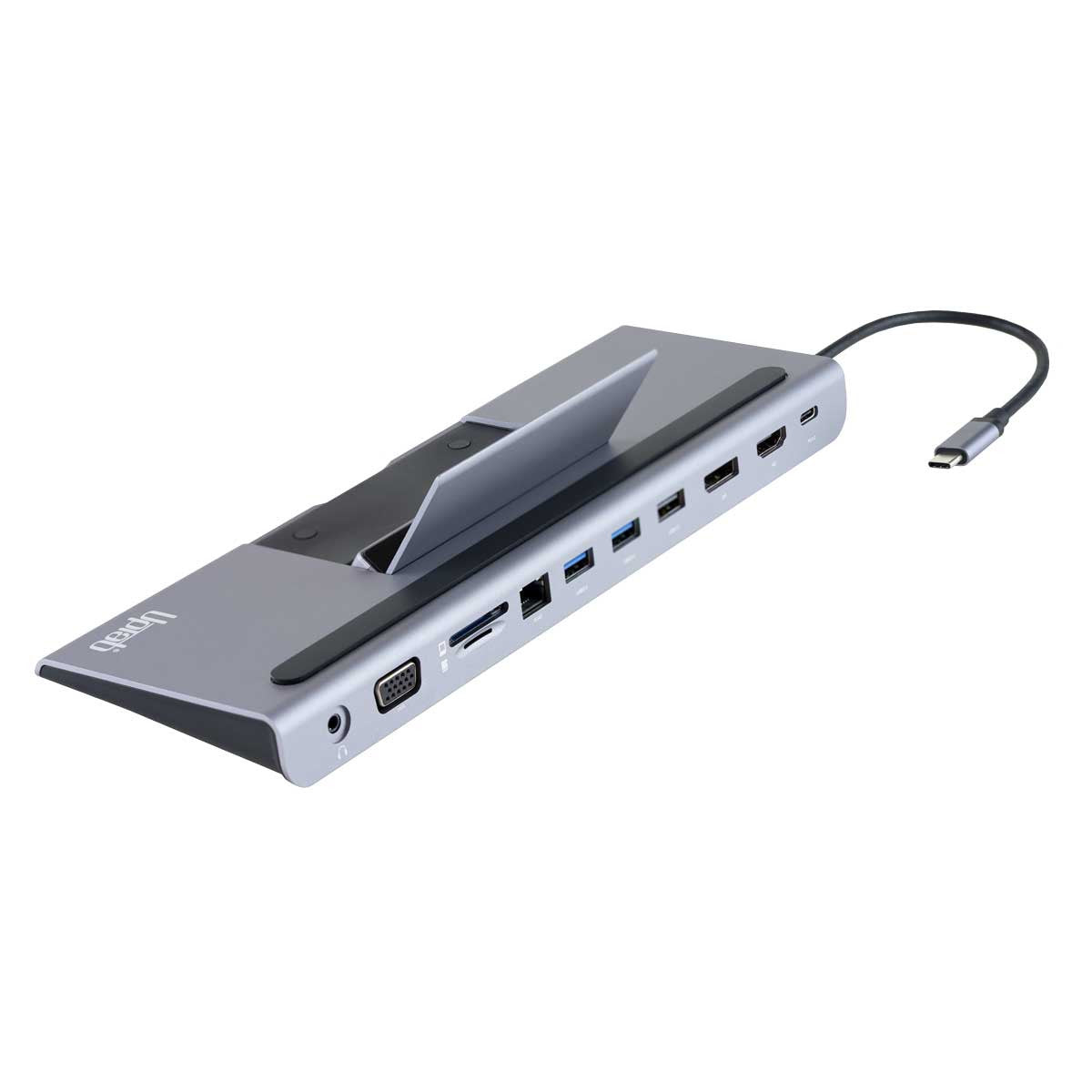

使用 USB-C 扩展坞,打造极致多媒体工作站。这款设备设计了一系列极其便捷的功能,非常适合需要快速高效完成工作或项目的用户。

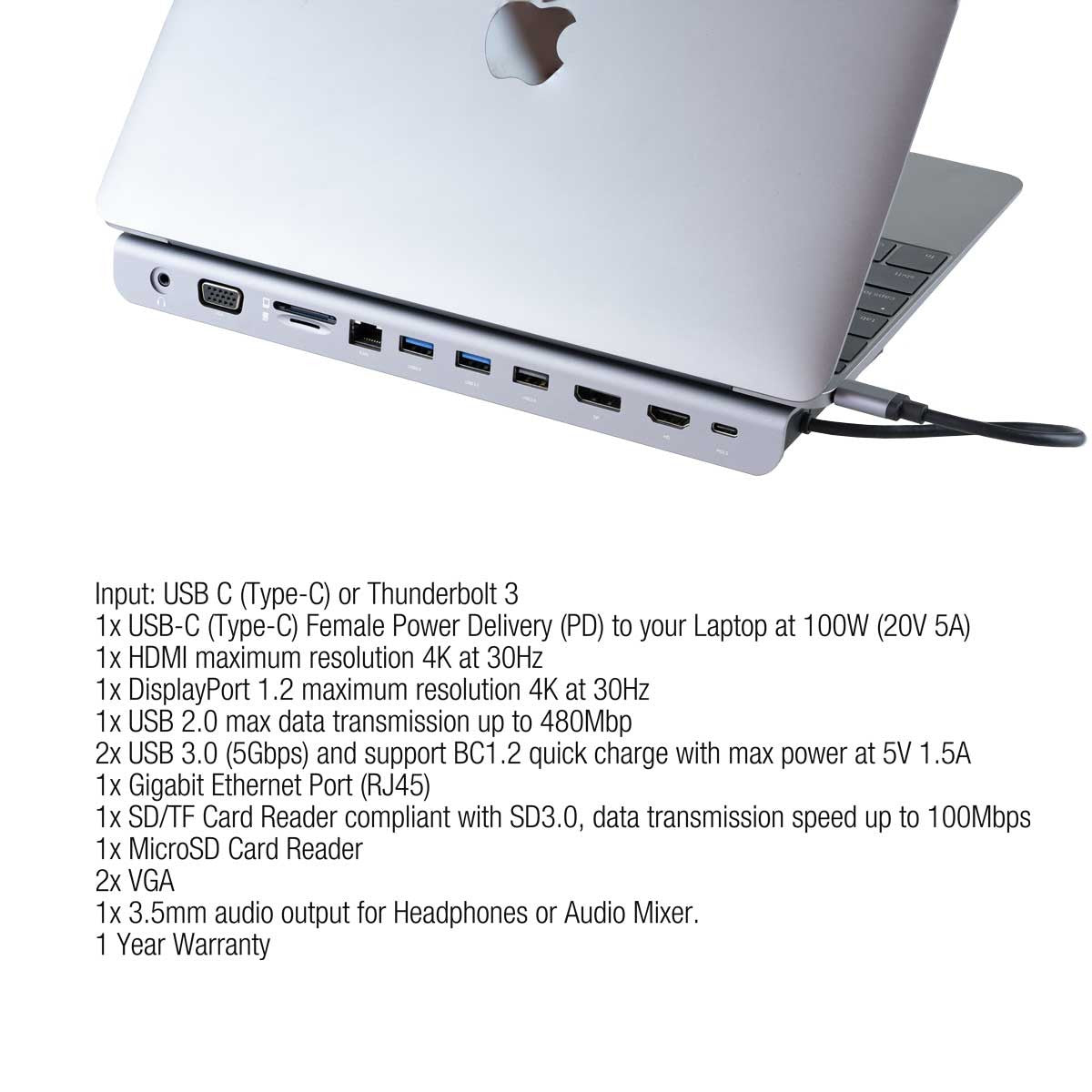

作为带有 USB-C 或 Thunderbolt 3 端口的笔记本电脑的完美伴侣,这款 USB-C 扩展坞可将简单的设置转变为完整的办公室。
配备 SD/MicroSD 存储卡读卡器,让您轻松快速地访问数据。两个 USB 3.0 端口和一个 USB 2.0 端口,让您可以连接多个 USB 外围设备,实现同步功能。
千兆以太网端口支持 LAN 连接,DisplayPort 端口支持超高清 4K 输出,VGA 端口则可连接高清显示器。此外,电源直通功能可方便地为连接的笔记本电脑充电。如果您需要工作/休闲娱乐,还可以连接耳机或麦克风。

强调:

  • 理想的笔记本电脑伴侣
  • 转变为工作站
  • 配备 SD/MicroSD 卡读卡器
  • 2 个 USB 3.0 端口和 1 个 USB 2.0 端口
  • 用于 LAN 连接的千兆以太网端口
  • DisplayPort 超高清 4K
  • VGA 端口用于高清显示
  • 用于充电的电力输送
  • 连接耳机或麦克风

支持的视频分辨率:

  • DisplayPort:分辨率高达 3840 x 2160 / 30Hz。
  • HDMI 端口:分辨率高达 3840 x 2160 / 30Hz。
  • VGA端口:分辨率高达1920 x 1200/60Hz。
  • HDMI+DisplayPort:分辨率最高可达 4Kx2K@30Hz。仅限镜像模式,笔记本电脑连接两台外接显示器时,显卡会有所不同。
  • DisplayPort+VGA:分辨率最高可达 1920x1080P@60Hz。仅限镜像模式,笔记本电脑连接两台外接显示器时,显卡会有所不同。
  • DisplayPort+HDMI、HDMI+VGA、DisplayPort+VGA) 最大分辨率可达 1920x1080P/60Hz,并采用多流传输 (MST) 技术。
  • 三个视频输出 DisplayPort+HDMI+VGA) 最大分辨率高达 720P/60Hz,支持多流传输 (MST)

方面 L 10 1/4英寸 x 宽 3 1/2英寸 x 高 1英寸

在购买此扩展坞之前,请确保您的设备(计算机/平板电脑/智能手机)支持 USB Type-C 上的 HDMI/DisplayPort Alt 模式。

包装内容

  • 1x UPTab USB C 3.2(Type-C)12 合 1 扩展坞,带以太网、DisplayPort 4K、HDMI 4K、VGA、3 端口 USB 3.0、USB C PD 100 瓦和 SD/TF 读卡器

Customer Reviews

Based on 6 reviews
17%
(1)
67%
(4)
17%
(1)
0%
(0)
0%
(0)
L
Lisandro
Not what is in the description

No Thunderbolt 3 cable and now way to select it

F
FiFi's Mom
Works as described, laptop slides off doc station

Works as described, laptop slides off doc station, uncomfortable position to type from. Only tried it with Windows10 Works as described

E
Eric Yeboah
Good

Product used when it came in. But once I tried and it working perfect that's all that matters

F
Frank Rush
Expansion Hub not well suited for use with Surface Pro

I like the UPTAB USB C EXPANSION HUB DOCKING STATION is the availability of the expansion ports and the inputs for SD and Micro SD card data transfer. I don’t like that It is not designed to work well with the Surface Pro computers. To use with an IPad will require an OPTIONAL adapter s none is supplied with the hub. I did not try to connect to a iPad.This is not recommended for use with a Surface Pro. All of the connections are on the opposite side and the hub cannot be placed underneath the computer. It will plug into the USB C port and lay flat along side the keyboard. I tested it in that location and the SD card slot worked, The Mouse worked and the Internet was good. This HUB is best used with an Apple product.Thank you for looking at my review. If you found this review valuable please click on the Helpful Icon. Thanks 😊

e
esanta
Very capable dock, some power issues

This sturdy dock looks good and works well. It features a massive number of ports, pretty much everything you could possibly want in a dock. It also has a folding stand convenient for a cell phone, although I find it of debatable usefulness.The one problem I've been having is related to power: when using the pass-through, depending on the order I plug the power adapter into the dock and the dock into the computer, and power the computer, the dock doesn't deliver power correctly and my MacBook Pro won't charge, this is why I'm dinging it one star. Otherwise, it's been an excellent dock and I've been using it everyday for weeks without any other issue than the one described above. Solid product.

Reviews in Other Languages

J
James F Robertson Jr
As advertised

It works as advertised
