产品详情

描述

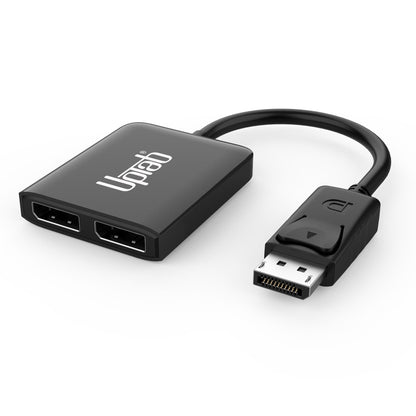

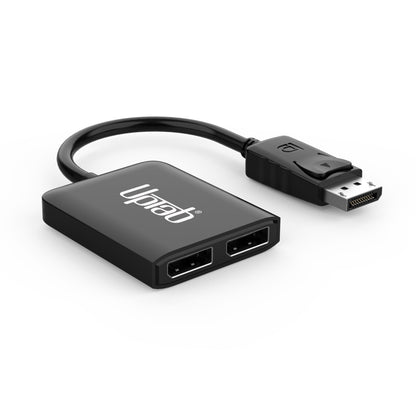

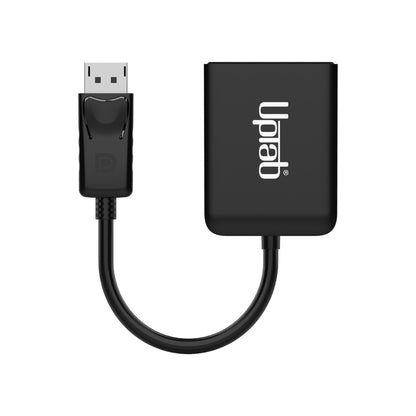

这款 UPTab DisplayPort 1.4 转双 DisplayPort 8K MST 适配器允许支持 DisplayPort 的设备连接到两台支持 DisplayPort 的显示器,以实现视频镜像、视频扩展或在两台显示器上观看单个视频图像。该集线器非常适合图形设计、电子表格分析、数字标牌应用和游戏。

通过将集线器配置为分配器,在每个显示器上显示相同的视频图像,将视频图像扩展到多个显示器,或将多台显示器合并为一个显示器来扩展视频图像,从而改善多任务处理并提高工作效率。该集线器非常适合多显示器桌面设置,其轻巧小巧的外形也使其在旅途中或外出时易于携带。当连接到单台显示器时,该集线器支持高达 8K (7680 x 4320) 60Hz 的分辨率;当连接到双台显示器时,支持高达 8K (7680 x 4320) 30Hz 或 4K (4096 x 2160) 60Hz 的分辨率。

该适配器可实现真正的 RGB 色彩,而不会像其他使用子采样的色彩格式那样出现视觉色彩衰减。当需要音频时,DisplayPort 适配器还可传输多达 8 声道音频,带来沉浸式的音频和视频体验。可通过双 DisplayPort 端口(单个或同时)传输视频。扩展显示模式仅适用于 Windows 10、Windows 8 和 Windows 7。目前,Apple macOS 不支持 (EST) 扩展模式。

笔记: 此适配器需要额外的外部电源。电源线必须连接到 USB 3.0 或 USB 4.0 接口才能为适配器提供足够的电源;不支持 USB 2.0(已包含 USB 线缆)。此 MST 集线器兼容 DisplayPort 1.4 和 1.2。源设备显卡和显示器必须支持 DisplayPort 1.4 和 MST。

具有集成 GPU 的计算机: Intel HD 4000。此适配器仅在镜像模式 SST 下工作。

镜像模式 英特尔高清显卡(Celero/Pentium CPU-GPU)

  • Intel HD Graphics 2000(iCore DC/QC Intel 7 系列 Express 芯片组 CPU-GPU 组合)
  • 英特尔高清显卡 2500/4000(i3/i5/i7 DC/QC 英特尔 7 系列高速芯片组 CPU-GPU 组合)

特征

  • 输入: DisplayPort 1.4
  • 输出: 双 DisplayPort 端口
  • 单显示器分辨率高达 8K (7680 x 4320),60Hz
  • 双显示器分辨率高达 8K (7680 x 4320) @ 30Hz 或 4K (4096 x 2160) @ 60Hz
  • 支持 4:4:4 色彩格式
  • 传输多达 8 通道音频,带来身临其境的音频和视频体验
  • 支持 Windows 显示扩展和镜像模式(MST 和 SST)
  • 支持MacOS镜像模式(SST)

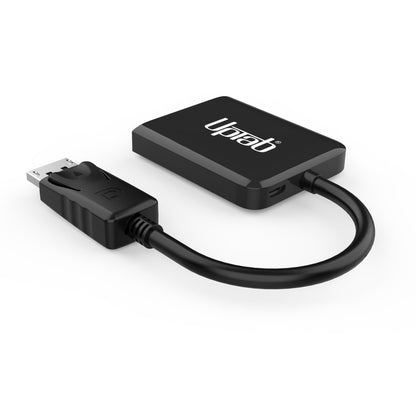

  • USB Micro-B 端口用于额外供电(见注释)

包装内容

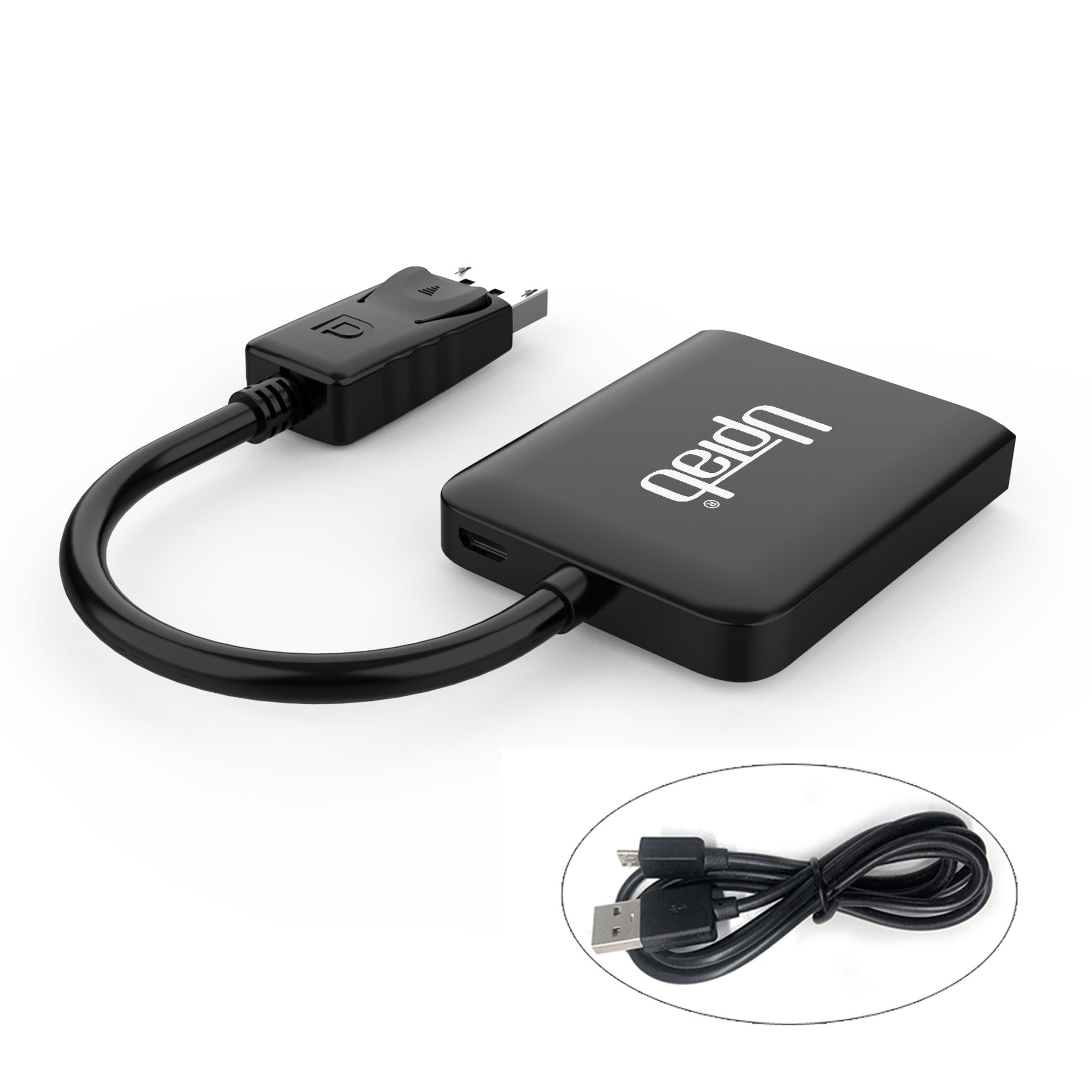

  • 1 个 UPTab DisplayPort 转双 DisplayPort 8K 适配器
  • 1 条 USB 转 Micro USB 40 英寸(1 米)线缆

Customer Reviews

Based on 21 reviews
38%
(8)
14%
(3)
14%
(3)
10%
(2)
24%
(5)
T
Tony H.
Works great

I was able to split and extend to 2 monitors.

J
Jossiwales
Works

Works

P
Paul Richter
Extremely Well Built

This UPTab product is extremely well built. It's solid and fully functional -- the case is even covered in a protective plastic sheet to prevent any scratches during final assembly and shipping. There is only one area where I would make improvement: I would ask for in the package and that would be some instructions regarding the use of a powered USB connection. I use a very modern NVidia RTX graphics card, and it required the USB powered cable in order for it to work properly. I had to research online for that fact. That's inconvenient and initially caused my system to crash when I just put the monitor cables on by themselves. I didn't even see the small USB port on the back until the online instruction pointed it out. So there you have it. You have a great product at a great price. It just needs to come with an advisory on the use of the USB port. Thank you for all your hard work.

A
Alexander Barroca
Don’t Buy... Waste of money and unhelpful customer service!!!

This is a completely useless waste of money. I originally purchased this device for my home office. After a few short months it stopped working. I contacted the manufacturer for a replacement and they had me try several steps. Nothing worked. They eventually sent a replacement. The replacement is even worse. It causes the screens to flicker on an off repeatedly. I asked them to replace again and they said it is impossible and must be my fault. But I I have tried everything they suggested and it still doesn’t work. I guess I am just out the money now.

G
Gaby
Excellent product

For me its working perfectly with 2 monitors one is 4k 30hz and on 2k at 60hz both with good image and not errors at al.
