产品详情

描述

立即将您的 Windows 或 Mac(包括 Intel 或 M1/M2/M只需一根线缆连接 UPTab 4K 三屏显示 USB-C 扩展坞,即可将 3 台笔记本电脑变成一台多显示器台式机。这款扩展坞利用 USB 3.2 的创新技术,率先将 DisplayLink 和 DisplayPort“备用模式”应用于 USB-C 规范中的主显示输出。此外,它还是首批支持 USB 100W 供电的笔记本电脑扩展坞之一,可为连接到它的笔记本电脑、二合一设备或 Windows 平板电脑充电。并非所有 USB-C 端口都支持 DP 备用模式或 PD 充电。此扩展坞需要完全兼容的 USB-C、USB4、Thunderbolt 3 或 Thunderbolt 4 端口。

用于三重 4K 显示器的 USB-C 主机连接:

UPTab DisplayLink Docking Station Triple 4K Monitors

连接到 USB-A 3.2(USB 3.0)主机时有限制,最多可连接两台显示器,并且无法为笔记本电脑充电。

轻松设置:即插即用设计,一根线缆即可连接所有设备。只需插入扩展坞线缆即可为您的设备充电,并可立即连接外接显示器、键盘、鼠标等设备,将您的笔记本电脑/平板电脑轻松变身为台式电脑,告别桌面杂乱的线缆。美国本土品牌 UPTab,旨在提升您的工作效率。

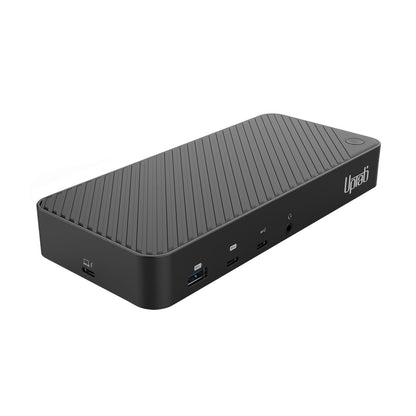

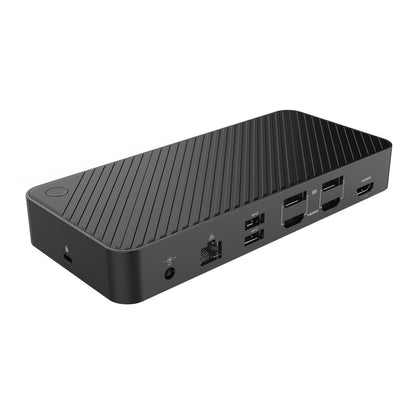

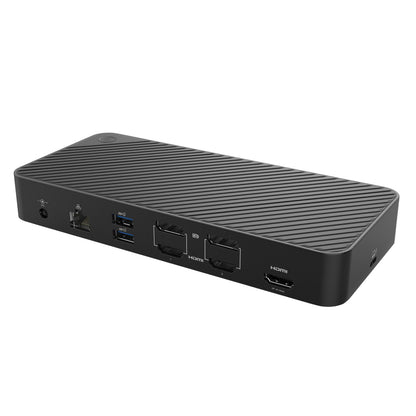

UPTab DisplayLink 扩展坞。正面和背面:

UPTab DisplayLink Docking Station Ports. Front and Back.

  1. 输入:USB-C 3.2 Gen 2 或 USB-A 3.2 Gen 1 (USB 3.0) - 附带 USB-C 和 USB-A 线缆
  2. USB-A 3.2 Gen 2(10 Gbps,支持 BC 1.2 充电)
  3. USB-C 3.2 Gen 2(10 Gbps,支持 BC 1.2 充电)
  4. USB-C 3.2 Gen 1(5Gbps)
  5. AUX/MIC 3.5mm 音频和麦克风端口
  6. 为笔记本电脑提供 100 瓦功率。总功率为 130 瓦(24V/5.4A)
  7. 千兆以太网(10/100/1000)
  8. 2 个 USB-A 3.2 Gen 1(5Gbps)
  9. DisplayPort 或 HDMI:4K @ 60Hz(3840x2160)
  10. DisplayPort 或 HDMI:4K @ 60Hz(3840x2160)
  11. HDMI 4K @ 30Hz (3840x2160) - DP Alt 模式
  12. 用于 Kensington 式笔记本电脑锁的 K 型槽
这款 USB-C Gen 2 扩展坞支持 DP 1.4 和 HDMI 2.0 HDR,是双显示器或三显示器设置的完美选择,支持高达双 4K 60Hz 和一个 4K @ 30Hz 显示输出,具有三个 DisplayPort 或 HDMI 视频接口的任意组合,适用于 USB-C Gen 2(支持 DP 1.4)笔记本电脑、MacBook 和基于 Windows 的 Thunderbolt 3/4 笔记本电脑。

使用两个下游前置充电端口以及适用于 USB-A 和 USB-C 设备的 BC 1.2 为智能手机和其他设备充电。

快速充电端口支持始终在线充电,因此无论主机笔记本电脑是否连接,设备都会充电。

双 4K 显示器的 USB-A(USB 3.0)主机连接:

UPTab DisplayLink Docking Station connected to USB-A Host

高分辨率显示器: 获得更多屏幕空间,提升工作效率。高分辨率显示器(DisplayPort 接口,而非 HDMI 接口)将彻底改变您管理失控标签页和工作流程的方式。

告别颗粒感和狭小屏幕。使用此 Dock 扩展您的屏幕空间,减少处理高效任务所需的时间。

注意:要实现 4K 60Hz 分辨率,每台连接的显示器和线缆都必须支持所需的分辨率和刷新率。较旧的 USB-A 笔记本电脑仅支持双显示器设置。



兼容性:

苹果 M3: 我们的 DisplayLink 扩展坞将帮助您克服 Apple 新款 Macbook Air\Pro 中一个外接显示器的限制, M3 并允许您同时连接最多三台显示器,最高支持 4K、60Hz 和 HDR。

笔记本电脑兼容性: 兼容大多数运行 Windows 11/10/8.x/7 和 MacOS 的笔记本电脑和台式机,配备英特尔或 M1和 M2 款芯片,系统版本 10.14+。包装盒内含 USB 3.0 和 USB-C 数据线,用于将扩展坞连接到笔记本电脑。

不兼容: 与以下系统不兼容:基于 ARM 的 Windows 操作系统(例如 Surface RT)。

显示器兼容性:连接到支持所需分辨率的显示器时,支持两台高达 4K 60Hz(3840x2160 @ 60Hz)的高分辨率显示器。虽然向下兼容,但需要注意的是:• DisplayPort 1.2 显示器最高可支持 4K 60Hz;• DisplayPort 1.1 显示器最高可支持 4K 30Hz;• HDMI 1.4 显示器最高可支持 4K 30Hz。

软件兼容性: DisplayLink 是一项灵活且用途广泛的技术,非常适合大多数用户的工作流程。目前,在 macOS 12.0 Monterey 上,要观看 DHCP(受版权保护)的内容,例如蓝光/Netflix/Prime/iTunes/Hulu/Disney+ 等,您必须在 Google Chrome 设置中禁用硬件加速,或使用 Firefox 或 Opera 浏览器。

电源和充电: 仅当使用 USB-C 时才可以为您的笔记本电脑供电(请确保您的笔记本电脑可以通过 USB-C 端口充电),最多可为笔记本电脑提供 100 瓦的电力。

规格:

  • 千兆以太网
    • 10/100/1000

  • USB-A
    • 一个 USB-A 3.2 第二代 10 Gbps 端口(正面)(支持 BC 1.2 充电)
    • 两个 USB-A 3.2 第一代 5 Gbps 端口(背面)

  • USB-C(C 型)
    • USB-C 3.2 第一代 - 5Gbps 传输速度(正面)
    • USB-C 3.2 代 2 - 10 Gbps(正面)(BC 1.2 充电支持)
    • USB-C 主机连接(侧面)

  • HDMI
    • HDMI 1:4K @ 60Hz(3840x2160)
    • HDMI 2:4K @ 60Hz(3840x2160)
    • HDMI 3:4K @ 30Hz(3840x2160)(DP ALT 模式)

  • 显示端口
    • DisplayPort 1:4K @ 60Hz (3840x2160)
    • DisplayPort 2:4K @ 60Hz (3840x2160)

  • 辅助麦克风 AUX/MIC
    • 3.5毫米音频和麦克风端口

  • 直流电源
    • 为笔记本电脑提供 100 瓦电力
    • 总功率 130 瓦(24V/5.4A)

  • 肯辛顿锁
    • 肯辛顿锁
方面:  L 7 1/2'' x 宽 3 1/4'' x 高 1 1/4'' (90毫米 x 85毫米 35毫米)

兼容性:

  • 支持 Windows 11、10、8.x 和 7 以及 macOS Intel 或 M1/M2和 M3 10.14+。不支持 ARM 和一些较旧的 macOS 版本。

包装内容

  • 1x 通用三重显示扩展坞 USB-C 或 USB-A
  • 1 条 USB-C 转 USB-A 线缆,19 1/2 英寸(500 毫米)
  • 1 根 USB-C 转 USB-C 线缆,19 1/2 英寸(500 毫米)
  • 1个直流电源装置
  • 文档

Customer Reviews

Based on 12 reviews
83%
(10)
17%
(2)
0%
(0)
0%
(0)
0%
(0)
M
Mark Hay
May be some problems between the screens

It's nice ,sturdy, versatile. Doing many things at the same time. Fantastic

J
Jorge
Exceeded my expectations

*Installation of driver is easy*Connects to monitors without issue*Gets a bit warm if left on for a while but does not get hot*Has on/off button to turn off the deviceMy only wish is that the on/off button could be used to boot up my workstation.

J
J. Hansen
Didn't quite work out for me

I have a unique situation, and was looking for a nice thunderbolt hub that, hopefully, would've cause any problems. My situation is I have a 2011 27" iMac, which has an upgraded Nvidia graphics card, and so, using OpenCore Legacy Patcher, I'm able to run the latest Mac OS Monterey on it. The machine is really for my kids, and their school work, but my nearly 14 year old daughter has really gotten into video lately. As a result, I purchased an Apple Thunderbolt 2-3 adapter, in hopes some of the latest thunderbolt 3 devices could be used with the iMac. I'd previously tried a Plugable thunderbolt 4 hub, which worked, but, for some reason, when plugged in it would have a grey screen when booting for far too long. The Mac would eventually start up, but my kids got annoyed with how long it would take to do so. As a result, I started looking for another solution.I came across this hub, and, considering the price, thought it might be comparable to the Plugable hub, although this offered far more ports. It touts being usable for thunderbolt 3/4, so I gave it a go. Sadly, plugging it into the Apple Thunderbolt adapter didn't do a thing. This certainly powered on due to the extremely large power supply it comes with, but I couldn't ever get any devices plugged into it to be recognized on the iMac (I could successfully do so using the Plugable hub). I think, ultimately, it's due to this being a USB 4 hub in actuality versus a thunderbolt hub, despite pricing being very similar.Although it didn't end up working out for my ideal use case, I have been able to find it a home with my Mac Studio I use as my work daily driver. Plugged it in there, and, of course, anything plugged in fired right up. I should note, in addition to the huge power supply it comes with, it does also come with a USB-C to USB-C cable, as well as a USB-C to USB-A cable. I merely used the USB-C myself, and have been able to get near expected speeds with a Samsung T7 SSD plugged into it. I have a huge LG display, so really don't have a use for all the additional HDMI ports it offers. This does seem like a solid hub for what it is, although a little pricer than comparable thunderbolt hubs you can get from OWC, for instance. If you're in the market for something like this, it's not a bad choice at all.

D
Dipped in Ink
Consolidated design

This docking station is perfect for a small workspace. It is small and sturdy; its metal outer shell makes it easy to travel with without worrying if it will damage or crack. Today, most of these docking stations are made out of metal, but the difference is that some metals are prone to overheating while this one has a self sustaining and very capable fan that keeps the exterior nice and cool while operating. Additionally, it is heavy enough to weigh down on your tabletop without moving too much but light enough to throw in a tote bag for traveling. Further, the best quality about this is the consolidation of wires with its layered port design. Instead of all of the ports being one next to the other, they are layered on top of one another which keeps the device itself nice and small while still providing ample power. I use this with my Macbook Pro and I have no issues with connectivity or glitching– in fact, it has made transferring data onto my desktop PC much easier and faster.This is also extremely easy to set up. It comes in reliable and durable casing that is both protective and not wasteful as it doesn’t come with any extra plastic baggies or annoying stickers. The directions ares straightforward and easy to follow, but honestly, you don’t really need them. This is as simple as plugging in and getting started. I have this attached to my monitor constantly so anything I plug into the loose USBs just pops up right away on the monitor– this has made photo and video uploading from my camera a breeze.Overall, this is one of the best small docking stations on the market. If you’re looking to consolidate desk space with a sleek and durable device, this is the one for you!

M
MADPWR
Solid Performing Thunderbolt Hub with Lots of Connections

This review is for UPTab Thunderbolt Docking Station (ASIN: B09R17WR43). I am converting over my PC and laptop to Thunderbolt, so I am working on setting up a Thunderbolt environment. This docking station was interesting for its compact size and number of connections, particularly the video connections. It’s very rare that I see a docking station that has 2 x HDMI and 2 x DP outputs. You can’t use all four at the same, but you have the ability to mix and match two of them. You can support dual 4K @ 60Hz, which I rarely see. I’m also surprised to see 2 x USB-C on the front. Normally, I never see more than a single USB-C. It would have been a big bonus if at least one was Thunderbolt. This way I could plug an external Thunderbolt enclosure into it. I tested this with a 4K @ 60Hz monitor, and it worked just fine. I don’t have dual 4k monitors though. Also, the power supply is quite large. This is a good hub, but it’s not perfect. I am still searching for the perfect Thunderbolt hub. However, this can be said of pretty much every hub I have seen so far. Depending on your use and connections needed, this hub could work out perfectly for you.
