产品详情

描述

概述

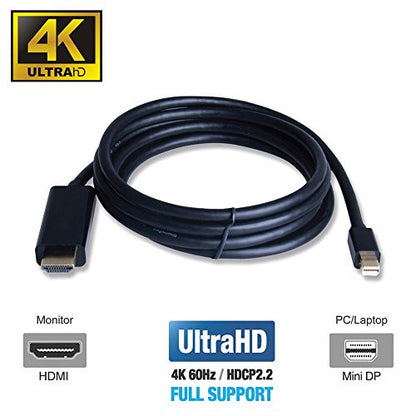

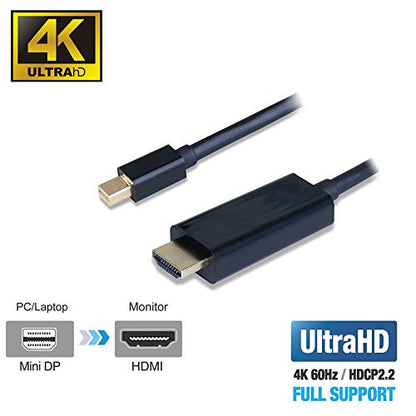

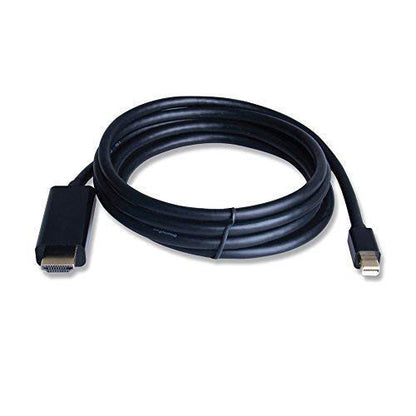

UPTab Mini DisplayPort 1.4 转 HDMI 2.0b 有源线缆可将您的 Mini DisplayPort 电脑连接到 HDMI 超高清显示器。这款线缆非常适合从事高端计算、游戏和图形处理的用户,可提供极致性能。Mini DisplayPort 1.4 转 HDMI 2.0b 线缆拥有高达 18Gbps 的 HDMI™ 2.0b 吞吐量,是需要流畅 60Hz 帧率的 4K 视频的理想之选。

将 Mini DisplayPort™ 接口的一端连接到您的计算机,并将显示器上现有的 HDMI™ 线缆插入线缆。线缆将 Mini DisplayPort 视频信号转换为分辨率高达 4096x2160@60Hz 的 UHD 4K HDMI 信号。由于支持 4:4:4 色彩格式,线缆可呈现真实的 RGB 色彩,而不会像其他使用子采样的色彩格式那样出现视觉色彩衰减。当需要音频时,Mini DisplayPort 线缆还可传输高达 8 声道的音频,带来沉浸式的音视频体验。

  • HDMI 2.0b 数据速率高达 18Gbps,Mini DisplayPort 1.4 和 1.3 数据速率高达 5.4Gbps/通道
  • 支持高达 4096 x 2160 的显示分辨率,帧率为 60Hz,色彩为 24 位
  • 包括带有内部 SPI ROM 的片上微处理器
  • 支持高达 12 bpc 的 RGB、高达 12 bpc 的 YCbCr 4:4:4、4:2:2 和 4:2:0
  • 支持内容保护格式 HDCP 1.4 和 HDCP 2.2
  • 具有片上按键的 HDCP 1.4 和 HDCP 2.2 中继器功能
  • 支持 TMDS 扰频以减少 EMI/RFI
  • 支持 SCDC(状态和控制数据通道)
  • 音频支持最多 8 通道 LPCM
  • 自供电,无需外部电源
  • 支持高动态范围(HDR)
  • 电缆长度 6 英尺
  • 多屏蔽电缆
  • ABS外壳



规格
  • 输入:Mini DisplayPort™ 公头 或 Thunderbolt 2
  • Apple iMac、MacBook Pro 或 Mac Pro 的理想配件
  • 输出:HDMI;无需 HDMI™ 线缆
  • 只能将信号从 Mini DisplayPort 转换为 HDMI。这不是双向线缆

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Ridgemontpointe
If you need “ACTIVE” this Cable will do the job.

This cable is advertised as Active. Indeed it is and that was the primary requirement to resolve an issue we were experiencing with a multiple monitor configuration. One of our employees suffers from poor eyesight due to diabetes. We set up three 42” 4K Monitors on a Dell PC with a 4 port video card. But only two monitors worked with standard cables. Dell recommended an Active Adapter, but we purchased this Actice cable instead to eliminate the extra connections of the old cable plush Active adapter. The cable resolved the issue and our employee is extremely happy.

D
David Guthrie
2013 15" MacBook Pro 2160p @ 60Hz

I managed to get my 2013 15" MacBook Pro to connect to a 40" Samsung UHD tv and display 3840x2160 @ 60Hz. I tried a few other adapters and just couldn't get them to work.I still had to use SwitchResX to create the right settings - Apple artificially prevents the 60Hz mode - but after that it works flawlessly and the sound will go through the adapter properly as well.

J
Jeff Henderson
Five Stars

Great from my iMac 5k to HDMI 2.0a - 4k 60p signal looks good on my Sony 43" 4ktv.

A
Amazon Customer
Works!

Works. Walmart converter didn't do the trick. This one worked. Hooked my PC to a 4K TV, and was able to display content at full 4K resolution.

B
Bobby W
That's really nice!

Working as expected. Using a mac with an AOC 4k monitor @ 60hz. Did my research before purchasing, but thanks a lot for the warming email of instructions. That's really nice!
